Beckett ADC 12-V



Part #1390
Beckett Burner
12 Volt
For Heaters
Up To 6 GPM

Click Price to Order
$475.00

Beckett SDC 12-V



Part #1391
Beckett Burner
12 Volt
For Heaters
Over 6 GPM

Click Price to Order
$598.79

Beckett AFG 115-V



Part #1393
Beckett Burner
115 Volt
For Heaters
Up To 6 GPM

Click Price to order
$377.24

Beckett SF 115-V



Part #1394
Beckett Burner
115 Volt
For Heaters
Over 6 GPM

Click Price to Order
$398.00

Tech Talk – Burners

Burner Color

12-volt burners run off of your pressure washer battery and your engine has to keep that battery fully charged in order for the burner to function properly.  You will notice that there are 2 12-volt burners.  The ADC series is to be used with machines pumping no more that 6 gallons of water per minute. They can be used on higher GPM machines but don’t expect the water to get near as hot – maybe around 150 degrees on a 10 GPM machine.  If you have a higher GPM machine then you will need an SDC burner to get water in the temperature range of 200 degrees.

Here is the problem that many contractors get themselves into.  The engine battery recharging system when using the ADC burner must be at least 18 amps and for the SDC burner the recharging system must be at least 25 amps.  Anything less and not only will your burner be smoking most of the time but you will be destroying many of the workings of the burner simply because you are not supplying enough 12-volt electricity to the burner.

Also note that the ADC burner cannot handle a fuel nozzle greater than a 2.50 nozzle which is 2.5 gallons of fuel per hour while the SDC burner can handle up to 4 gallons of fuel per hour with a 4.00 GPH nozzle.

Fuel Pumps & Solenoids

Suntec Pump

Part #1399
A2VA-7116
3,450 RPM

Click Price to Order
$59.99

Suntec Pump

Part #1400
A1YA-7912
1,725 RPM

Click Price to Order
$79.21

Beckett 120V

Part #1397
A2EA-6527B
3450 RPM

Click Price to Order
$79.89

Beckett 12VDC

Part #1398
A2EA-6527
3,450 RPM

Click Price to Order
$79.98

Solenoid, 12V


Part #1417
Suntec R261NL

Click Price to Order
$54.79

Solenoid, 120V


Part #1418
Suntec R642NL

Click Price to Order
$49.79

Fuel Pump Gauge

Part #1128
For Suntec Pumps
Up to 200 PSI

Click Price to Order
$11.59





Tech Talk

You should always have a pressure gauge installed on a fuel pump. SunTec pumps are the only ones with a gauge port. Above is a picture showing you where this optional gauge goes. When burner problems arise the first thing you need to know is if the pump is producing the right pressure.

Typically – the recommended fuel pump pressure for a pressure washer burner is 140-150 psi. Anything less and chances are all of the fuel will not burn resulting in a ‘smoking’ burner and premature coil cleaning.

Flow & Pressure Switches

Vertical Mount

Part #1367
4,380 PSI
Vertical Mount
3/8″ FPT In/Out

Click Price to Order
$53.47

Vert or Horiz Mount

Part #1368
4,380 PSI
Horizontal or Vertical Mount
3/8″ FPT In/Out

Click Price to Order
$50.94

Replacement Reed

Part #1366
Fits Part #1367 & #1368

Click Price to Order
$22.18

General TMT

Part #1369
To 5,000 PSI
Horizontal or Vertical Mount
3/8″ FPT In/Out

Click Price to Order
$61.00

Suttner ST-7

Part #9505
4,350 PSI
Vertical or Horizontal Mount
1/4″ MPT

Click Price to Order
$49.97

Pressure Switch



Part #1370
3,650 PSI
1/4″ MPT

Click Price to Order
$31.95

Pressure Switch



Part #1371
3,650 PSI
3/8″ MPT

Click Price to Order
$31.95

Pressure Switch



Part #1372
6,550 PSI
1/4″ MPT

Click Price to Order
$78.80

Thermostats & Hi-Limit Switches

Thermostat

Part #C200-44
Espec Preferred
200° Shutdown
In-Line Fixed Type

Click Price to Order
$54.79

Thermostat

Part #1425
Probe Type
Adjustable
195 Degrees

Click Price to Order
$47.92

Thermostat

Part #1422
Probe Type
Adjustable
302 Degrees

Click Price to Order
$49.81

Thermostat

Part #1426
In-Line Type
Adjustable
200 Degrees

Click Price to Order
$168.91

** Tech Talk – C200 Thermostat

The C200 Series Thermostat the most popular “Fixed In-Line” Thermostat, as well as the most accurate.

The C200 has an 8-degree ‘dead-band’ which is the shortest response time of any other thermostat commonly found it the pressure washer industry.  This means that instead of the temperature dropping as much as 40 degrees before the burner comes back on.. it only drops 8 degrees – with the C200 Thermostat.

This feature provides a more  exceptionally even-clean especially when you are cleaning surfaces with heavy oxidation.

The C200 Thermostat shuts the burner down at 200 degrees – returns ignition at 192 degrees.

Hi-Limit Shutdown **

Part #1107
Safety Burner Shutdown

Click Price to Order
$39.46







** An Important Word about Hi-Limit Shutdowns

Shuts Down Fuel Flow If Water Reaches 230 Degrees.
Never Use Hi-Limit Switch In Place Of A Thermostat

CAUTION: Regarding Burners – there is one thing for certain. If you release the trigger to stop the flow of water and your burner fails to ‘shutdown’ within a very few minutes your coil will ‘explode’.

12V Burner Relay **

Part #2039
Required for 12V Burners

Click Price to Order
$29.99





** Burner Relays are Required for 12-Volt Burners

Many 12-Volt Burners fail prematurely is because the ‘hammering shock’ the components receive from the 12-volt source. This relay acts as a ‘shock absorber’ for 12-volt electricity before it passes it along to the burner.  When you install this relay you will dramatically extend the life of your flow, thermostat, hi-limit switches as well as the fuel pump solenoid.

Burner Motor

Part #1412
For 12 Volt Burners

Click Price to Order
$132.13

Soot Remover

Part #6999
STOP
smoking heaters!
1 Quart Bottle

Click Price to Order
$21.70

Coil Insulation

Part #1037
24″ x 5 Feet
Enough For 1 Coil!

Click Price to Order
$29.00

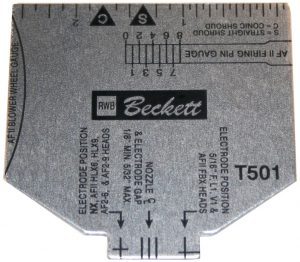

Electrode Tool **

Part #4501
Wont Go Far With Guessing!
Watch the Video (right)

Click Price to Order
$3.99

Fuel Filters and Burner Fuel Nozzles

Racor Filter

Racor Water/Fuel Separator

Part #1419
Includes Housing
& Filter Element

Click Price to Order
$36.52

Racor Element

Part #1420
Replacement
Element

Click Price to Order
$24.97

Premium Filter

Part #1794
Includes Housing
& Filter Element

Click Price to Order
$47.00

Premium Element

Part #1793
Replacement Element

Click Price to Order
$23.76

Burner Nozzles

1.00 GPH Part #1379
Click Price to Order
$11.97

1.25 GPH Part #1380
Click Price to Order
$11.97

1.50 GPH Part #1381
Click Price to Order
$11.97

1.75 GPH Part #1382
Click Price to Order
$11.97

2.00 GPH Part #1383
Click Price to Order
$11.97

2.25 GPH Part #1384
Click Price to Order
$11.97

2.50 GPH Part #1385
Click Price to Order
$11.97

3.00 GPH Part #1387
Click Price to Order
$11.97




** Typically…

…in order to achieve the industry standard of 210°, which in our opinion is not necessarily correct, a 2.00-2.25 GPH (gallons per hour) Nozzle would be installed on an ADC/AFG Burner while a 3.00 GPH nozzle would be installed on a SDC/SF burner.

Note: Ideal temperature for cleaning is around 140-160°. Anything over 160° and you will begin to breakdown important performance surfactants in cleaning detergents.

Theoretically you could eliminate the thermostat by downsizing the burner nozzle. Example: a 5.5 GPM machine with a 2.0-2.25 Nozzle will run approximately 200-210°. By installing a 1.50 or 1.75 nozzle you will reduce and run at a constant and more effective temperature.

Yes, the burner would continue running while the trigger gun is pulled bit over the long run it is much cheaper when you consider both the fuel consumption and wear and tear on the burner.

Burner Igniters & Transformers

Beckett Igniter

Part #1405C
Beckett Igniter
with CAD Cell
12 Volt
‘ADC’ Series

Click Price to Order
$99.00

Beckett Igniter

Part #1405
Beckett Igniter
No CAD Cell
12 Volt
‘ADC’ Series

Click Price to Order
$98.97

Beckett Igniter

Part #1404C
Beckett Igniter
with CAD Cell
12 Volt
‘SDC’ Series

Click Price to Order
$114.93

Wayne Igniter

Part #1375
Wayne
Igniter
12 Volt
Back Hinge

Click Price to Order
$179.00

Beckett Transformer

Part #1409
Beckett
Transformer
120 Volt
‘A’ Series

Click Price to Order
$59.97

Wayne Transformer

Part #1376
Wayne
Transformer
120 Volt
Side Hinge

Click Price to Order
$117.00

Wayne Transformer

Part #1408
Wayne
Transformer
230 Volt
‘S’ Series

Click Price to Order
$119.97

Transformer Tester **

Part #1947
Quickly test the
transformer output.
Stop guessing!

Click Price to Order
$49.97





** CAUTION: Be extremely careful working around a ‘hot’ transformer/igniter. Accidentally touching the power output probes will result in a sever shock. lf you have a ‘pacemaker’ or any heart monitoring or regulating device we strongly recommend that you do not perform this test. Consult your local pressure washer distributor.

Using the CheckMate

With the burner on and the transformer/igniter in the open position simply touch the CheckMate probes to the transformer/ignitier to the transformer/igniters two power outputs and if the CheckMate indicator turns green the unit is good.

Chemical Section

How to Wash Stuff

There is no one way to wash any surface. This data is meant to help people that don’t know how to wash and need guidelines. This information recommends certain cleaning chemicals, operating techniques, and methods that are proven to work. This guide is not meant to insult anyone that does the same job in a different way.  Read More…
